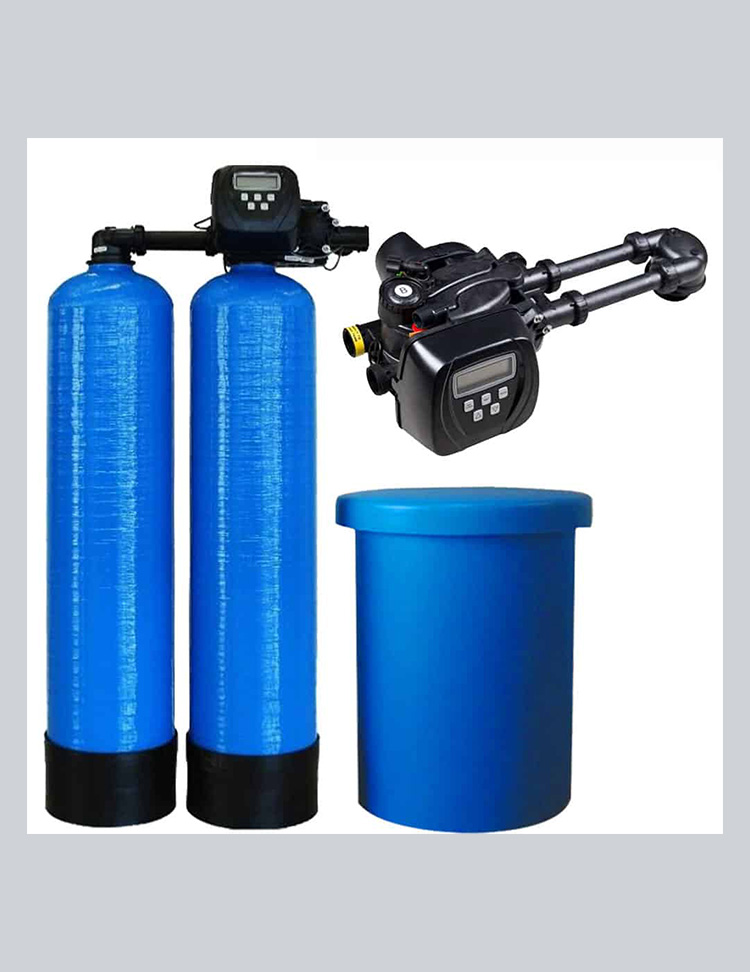

Industrial Water Softener

Features
Available water flow is between 14 GPM Up to 305 GPM (gallons per minute)
FRP Vessel Size Available: 13×54, 1665, 2160, 24×69, 30×72, 36×73, 42×78, 63×103
Clack Control Valve 1” up to 3”
Brine Tank : 100, 150, 200, up to 500 Litters
All custom made models have four distinct cycles of operations:
Backwash – hydraulic cleaning; up-flow
Slow rinse – displaces residual brine; down-flow
Brine refill – restores resin to sodium form; down-flow
Fast rinse – prepares softening resin for service cycle; down-flow.

Operation & Maintanance
Is extremely simple. After the initial set-up, the system is virtually self-sustaining. With the Automatic Head, back-flushing and clearing of trapped contaminants occur automatically, with a manual head this is done by hand with a lever. Replace media approximately every three years.

Solution
All these problems can be eliminated efficiently by installing an Automatic Water Softener. They utilise the ion exchange process where the calcium is replaced with the more soluble sodium. This is all done automatically using a timer control which allows the water softener resin bed to backwash and regenerates with a brine solution as required.
